RF Sub-systems
RF Sub-systems
Our RF sub-system solutions are designed to deliver reliable, high-performance communication across defence, aerospace, and mission-critical applications. KCS develops HF, VHF, UHF, and specialized RF systems with a strong focus on signal integrity, robustness, and operational efficiency in challenging environments.
Backed by strong RF engineering expertise, we support the complete lifecycle – from system design and simulation to integration, testing, and deployment. Our RF solutions are engineered to meet stringent defence standards, ensuring consistent performance, durability, and interoperability in field and platform-based operations.

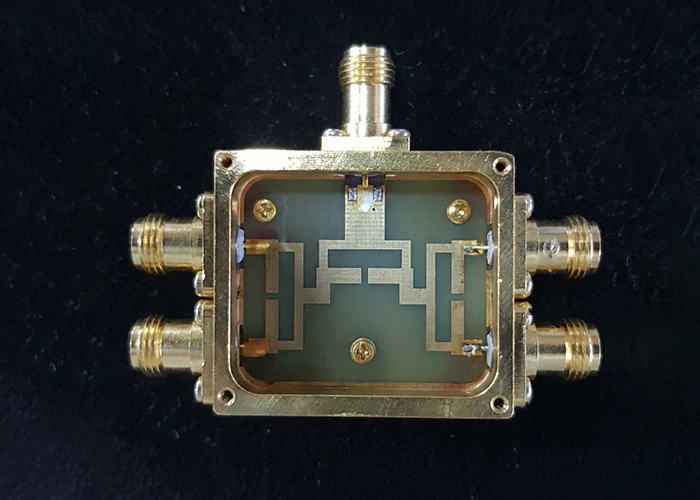

Power Dividers
Features : Low insertion loss, Better coupling, Excellent phase and amplitude balance, Low VSWR, Rugged

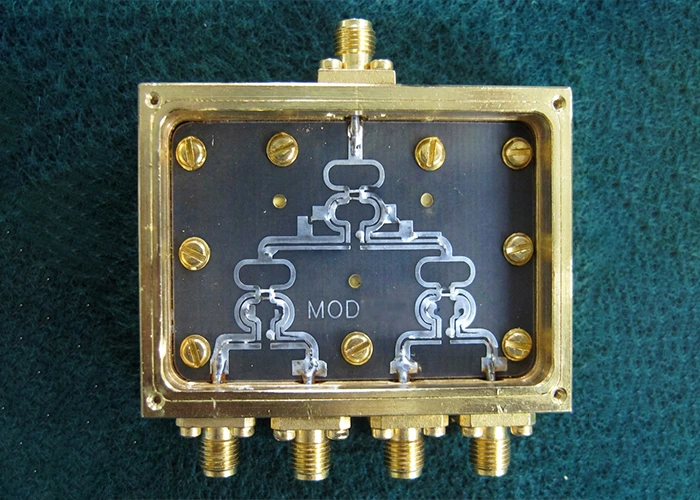

4-Way

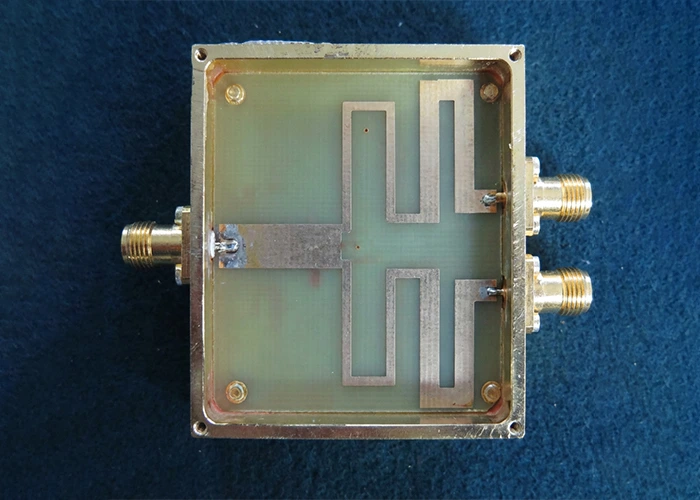

2-Way
4-Way

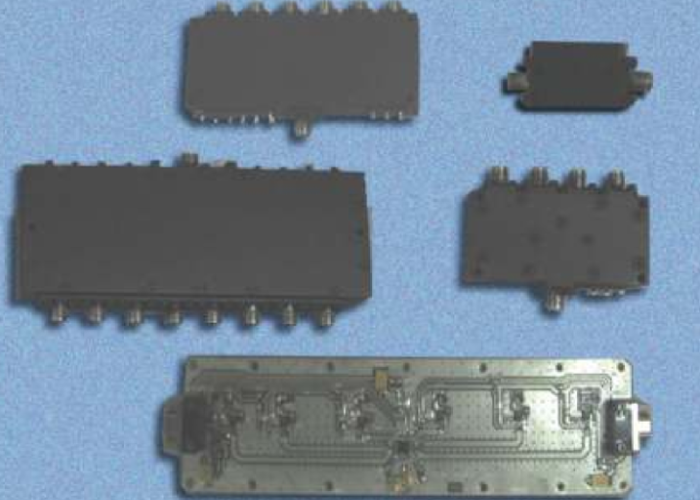

Switches
Switches
• Fast Switching
• High Isolation
• Very low power consumption
• Low insertion Loss
• Compact size

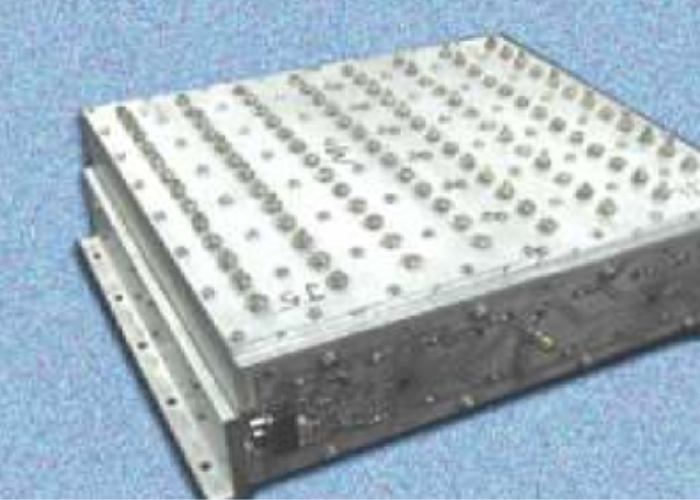

Switched Filter Banks
16T Switch Filter Bank
• Frequency : 1.3 - 2.7 MHz
• Insertion Loss : 8 - 9 dB
• Isolation : 80 - 90 dB
• VSWR : 2 : 1(Max)
6T Switch Filter Bank
• Frequency : 1.7 - 2.0 MHz
• Insertion Loss : 4 - 5 dB
• Isolation : 80 – 95 dB
• VSWR : 1.5:1(Max)

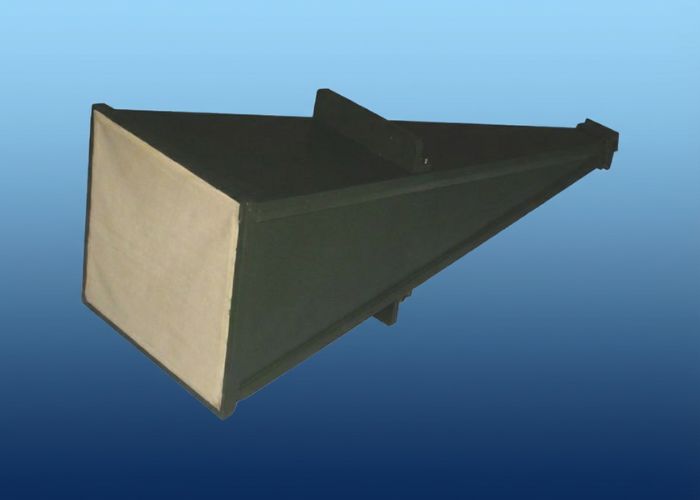

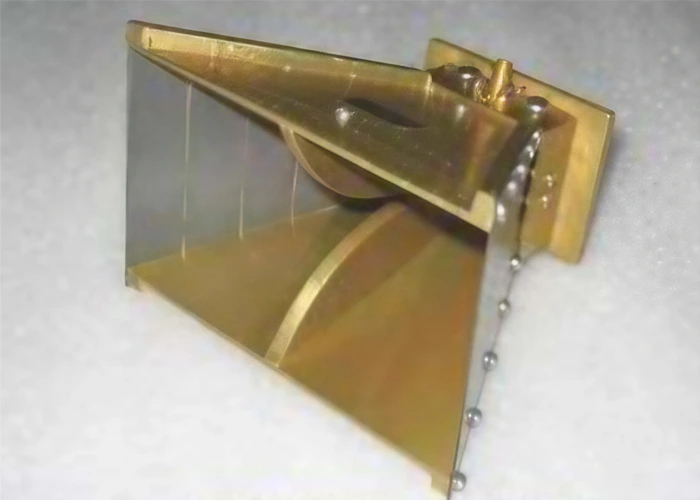

Broad Band Horn Antennas
2-6 GHz HORN
6-18GHz HORN
18-40GHz HORN
2-18GHz HORN
